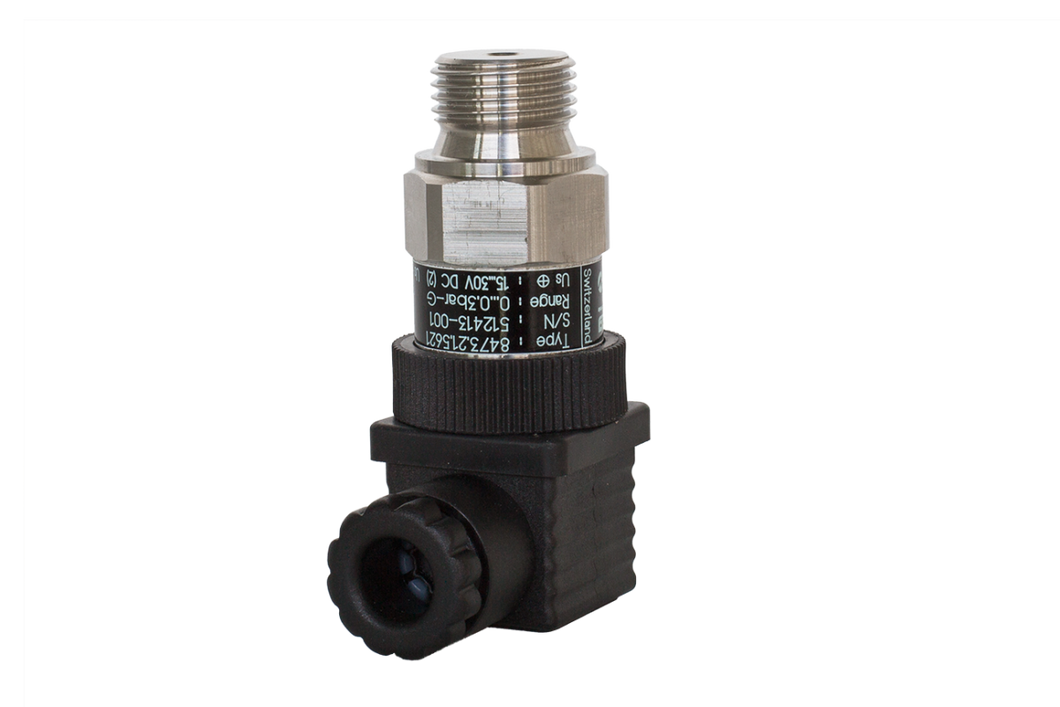

Pressure Sensor 0-10V (0 - 0.3 bar)

Regular price Tk 226.00 Sale

This 0-10V pressure sensor allows for accurate monitoring of pressure levels in various systems.

Measurement data with reference to a gauge pressure sensor
Measuring range from 0-0.3bar, or 0-6bar
Numerous applications such as process or process engineering, heating and ventilation, pump monitoring, general building systems, and much more.

Product Information

Overview

Available in two versions, the pressure sensor can be used in diverse applications for pressure monitoring.

Pressure sensor 0-10V 0-0.3bar:

The pressure sensor 0-0.3 bar is ideal for pressure measurement in the lower range, for example, the water level in the pool. Automatic water re-refilling is easy and simple with the Loxone Miniserver.

Technical Details:

Pressure sensor 0-10V 0-0.3bar:

Measuring range: 0-0.3bar
Output signal: 0-10 V
Supply voltage: 24 V DC (15-30 V DC)
Overpressure: max. 2bar
Burst pressure: 3bar
Pressure connection: relative - 1.4404 - G 0.5 "external

What's in the box?

1x Pressure sensor 0-10V

Downloads:

Product Datasheet
Loxone Config Software
How to Start a Configuration
Declaration of Conformity

Notes:

Please seek advice from a licensed electrician about this product, your project and your obligations under the law before attempting any electrical work! Australian State and Territory legislation may require a licensed electrician to undertake the work necessary to install this product in an electrical installation.
