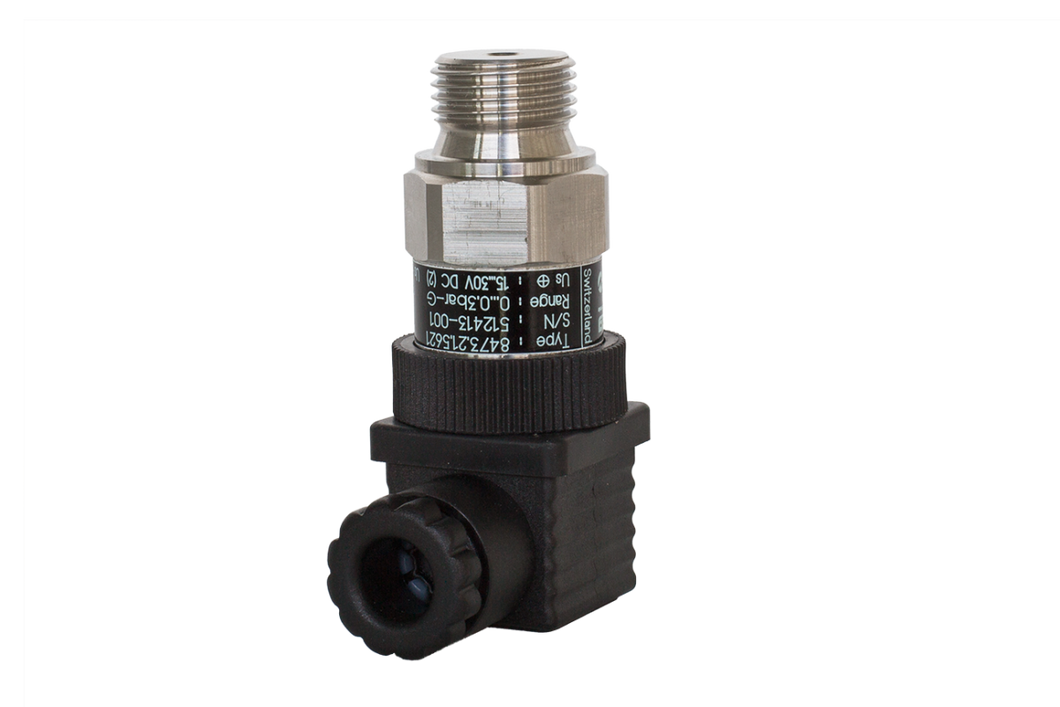

Pressure Sensor 0-10V (0 - 6 bar)

Regular price Tk 226.00 Sale

This 0-10V pressure sensor allows for accurate monitoring of pressure levels in various systems.

Measurement data with reference to a gauge pressure sensor
Measuring range from 0-0.3bar, or 0-6bar
Numerous applications such as process or process engineering, heating and ventilation, pump monitoring, general building systems, and much more.

Product Information

Overview

Available in two versions, the pressure sensor can be used in diverse applications for pressure monitoring.

Pressure sensor 0-10V 0-6bar:

The pressure sensor 0-6bar is suitable for monitoring pressure in a variety of different systems such as a pressure induced backwash process. The 0-6bar sensor is also ideal for use in heating and ventilation applications.

With an integrated 0-10V transmitter, both sensors are suitable for all devices that can process a 0-10V standard signal:

Suitable for continuous use with the Miniserver and Extensions

Suitable for use on all devices that can process a 0-10V signal

Technical Details:

Pressure sensor 0-10V 0-6bar:

Measuring range: 0-6bar
Output signal: 0-10 V
Supply voltage: 24 V DC (15-30 VDC)
Overpressure: max. 12bar
Burst pressure: 15bar
Pressure connection: relative - 1.4404 - G ¼ "external

What's in the box?

1x Pressure sensor 0-10V

Downloads:

Product Datasheet
Loxone Config Software
How to Start a Configuration
Declaration of Conformity

Notes:

Please seek advice from a licensed electrician about this product, your project and your obligations under the law before attempting any electrical work! Australian State and Territory legislation may require a licensed electrician to undertake the work necessary to install this product in an electrical installation.
