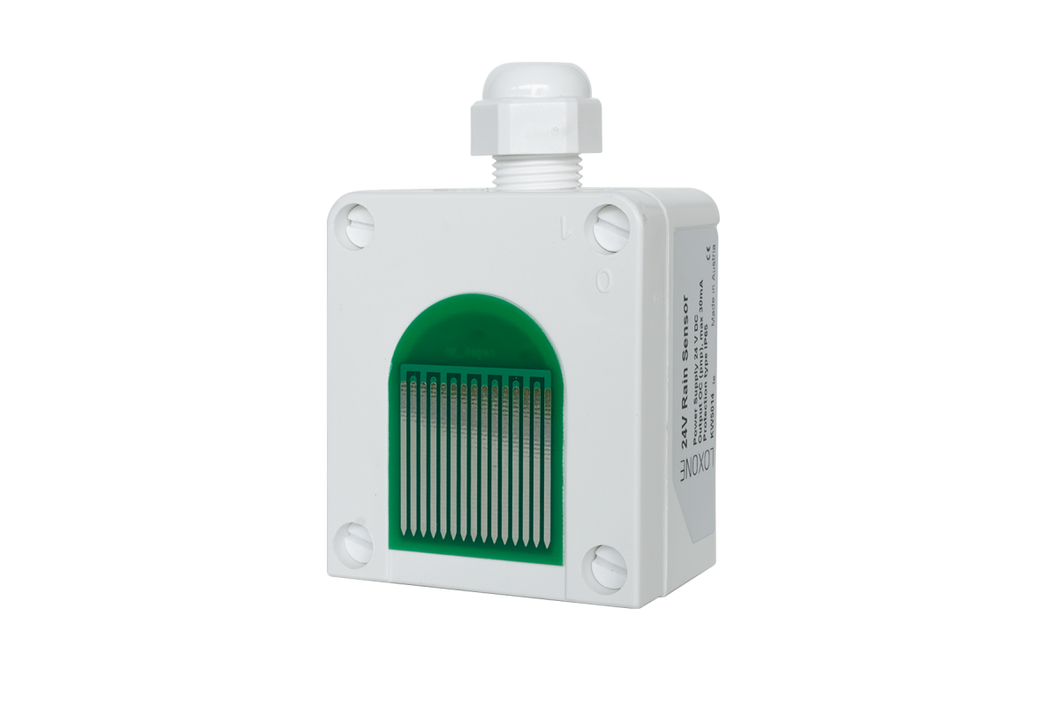

Rain Sensor (24V)

The rain sensor detects rain or snow and can also detect fog if the sensitivity is set to the right level. With optional PTC-heating to prevent ice and condensation from forming.

The rain sensor is contained in strong housing suitable for outdoor use. It has many uses:

• Detection of rain or snow fall
• Depending on sensitivity setting - for detection of fog
• Control of ventilation hatches, skylights and awnings
• Designed for long term use with the Loxone Miniserver or Extension
• Designed for use with any device with digital 24V inputs

Product Information

Overview

The rain sensor detects and reacts to rain and snow and based upon the setting sensitivity will also detect fog. In addition, the rain sensor has an automatic connecting-PTC heater to icing and condensation. The heater is activated depending on the outside temperature. When the outdoor temperature is less than 3°C, the heating is automatically activated. At temperatures above 3°C and no precipitation, the heating is off. To conserve power.

Technical Details:

• Supply Voltage: 24V DC ± 20%
• Power Consumption: 50 mA, (40 - 180mA during PTC-heating)
• Method of Measurement: Electrolytic
• Housing: ABS, IP54 Protection

What's in the box?

• 1 x 24V Rain Sensor
• 1 x Datasheet

 Downloads:

Product Datasheet
Loxone Config Software
How to Start a Configuration
Declaration of Conformity

Notes:

Please seek advice from a licensed electrician about this product, your project and your obligations under the law before attempting any electrical work! Australian State and Territory legislation may require a licensed electrician to undertake the work necessary to install this product in an electrical installation.
